Product Details​

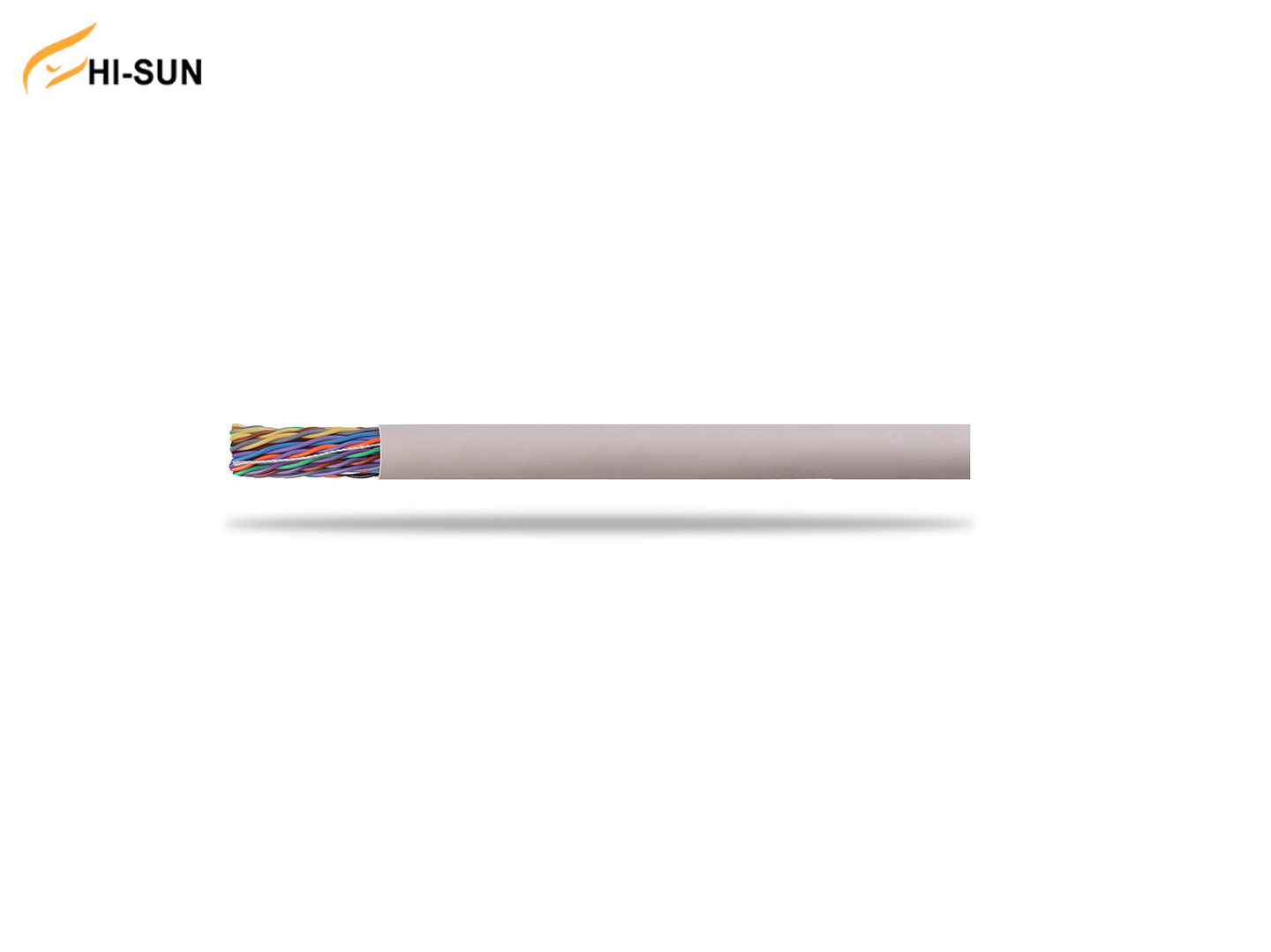

  • U/UTP unshielded CAT5
    ❤ 收藏

  • U/UTP unshielded CAT5

    Application

    Exceeds requirements and IS011801 Class D channel

    standards.

    Exceeds the requirements and IEC 61156-5 Category 5

    component standards.

    Descending cable length markings enable easy identification

    of remaining cable which reduces installation time and cable

    scrap.

    Packaged 305m (1,000 ft.) on a reel.

    Color Availability: Additional cable colors available.

    Patent products:CN200920124769. 9.

    重量：0.000KG
    • 数量：
商品描述

Application

Exceeds requirements and IS011801 Class D channel

standards.

Exceeds the requirements and IEC 61156-5 Category 5

component standards.

Descending cable length markings enable easy identification

of remaining cable which reduces installation time and cable

scrap.

Packaged 305m (1,000 ft.) on a reel.

Color Availability: Additional cable colors available.

Patent products:CN200920124769. 9.






Mechanical Characteristics
█Cable under the minimum tension>=400N.
█Conductor elongation :>=15V
█Jacket before Aging
Tensile Strength>=13. 5Mpa
Elongation>=150%.
█Jacket After Aging
Tensile Strength>=12. 5Mpa
Elongation>=125%.

Electrical Characteristics
█tmpedance:1-100MHz 100±15(0hms).
█Rated Temperature: 75*C.
█DC Resistance Unbatance(%): Max 2.5.
█DC Resistance 20*C: 111(0hms).
█Pair-to-Gruond Capacitance Unbalance: 330(pF/100M).
█Insulation Resistance: >5000MQ*Km.
█Dielectric strength: DC 2500V 2S.
HI-SUN U/UTP unshielded CAT3
