Product Details​

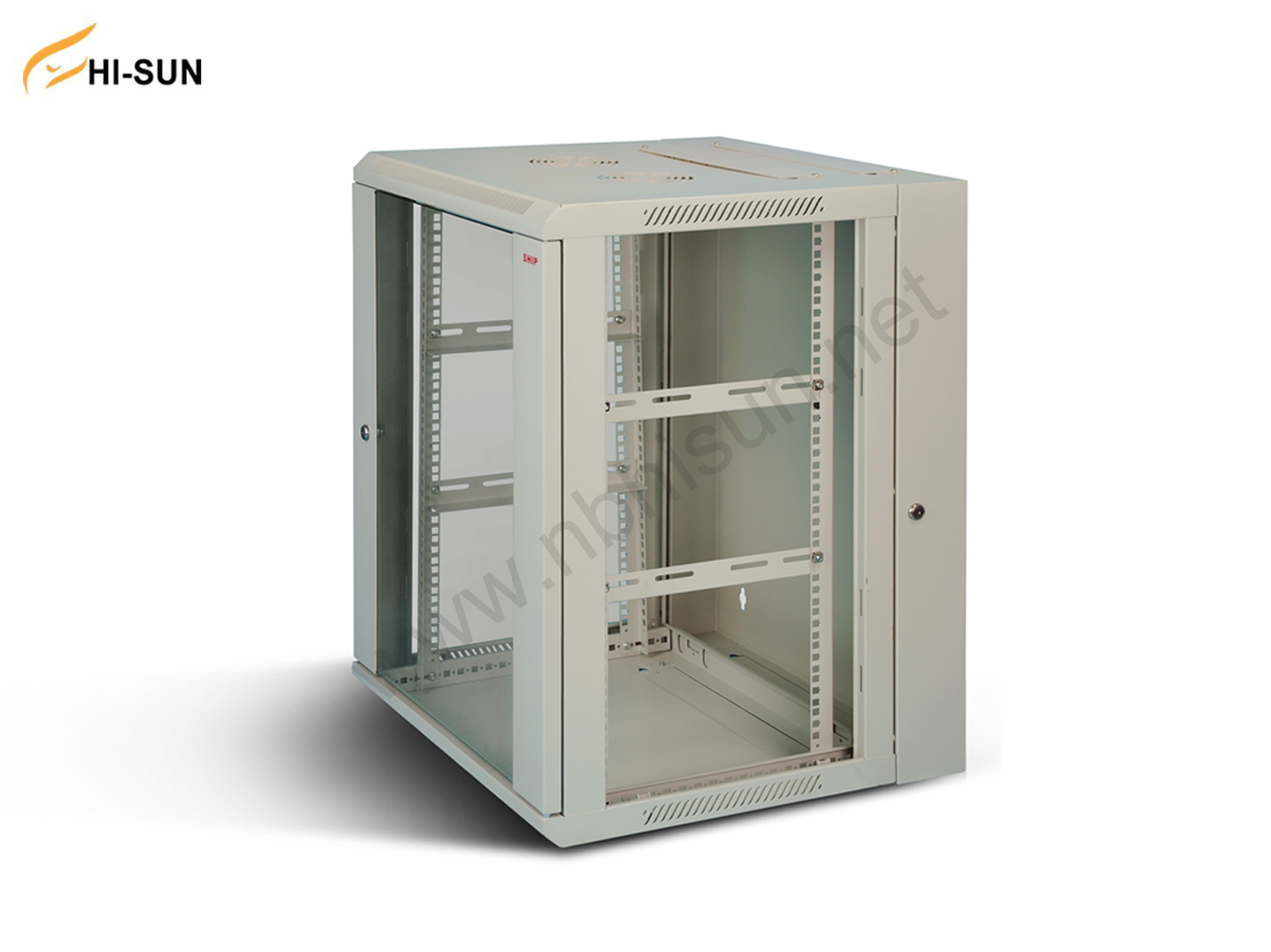

  • SB Wall Box
    ❤ 收藏
  • SB Wall Box

    Standard

    █
    Comly with ANSI/EIA RS-310-D、IEC60297-2、DIN41494;PARAT1;DIN41494;PART7.


    Material

    █  SPCC Cold Rolled Steel;
    █  Thickness:19" rails:2.0mm,
         side panel 1.0mm,others:1.2mm.



    Colour

    █  SB:RAL7035
    █  SB:RAL9004


    Loading Capacity

    █  Static loading:30KG

    重量:0.000KG
    • 数量:
商品描述

Standard

█
Comly with ANSI/EIA RS-310-D、IEC60297-2、DIN41494;PARAT1;DIN41494;PART7.


Material

█  SPCC Cold Rolled Steel;
█  Thickness:19" rails:2.0mm,
     side panel 1.0mm,others:1.2mm.



Colour

█  SB:RAL7035
█  SB:RAL9004


Loading Capacity

█  Static loading:30KG






                              Feature

                              ■    Double section welded frame structure;

                              ■    Easy operation and maintaining at the back;

                              ■    19" standard installation;

                              ■    Removable side panels, side locks are optional,
                             easy installing and maintaining
;

                              ■    Cable entry at the top cover and bottom panel;

                              ■    120mm fan optional;

                              ■    Turning angle of front door is above 180 degrees;
                              ■
Turning angle of rear door is above 90 degrees.
