Product Details​

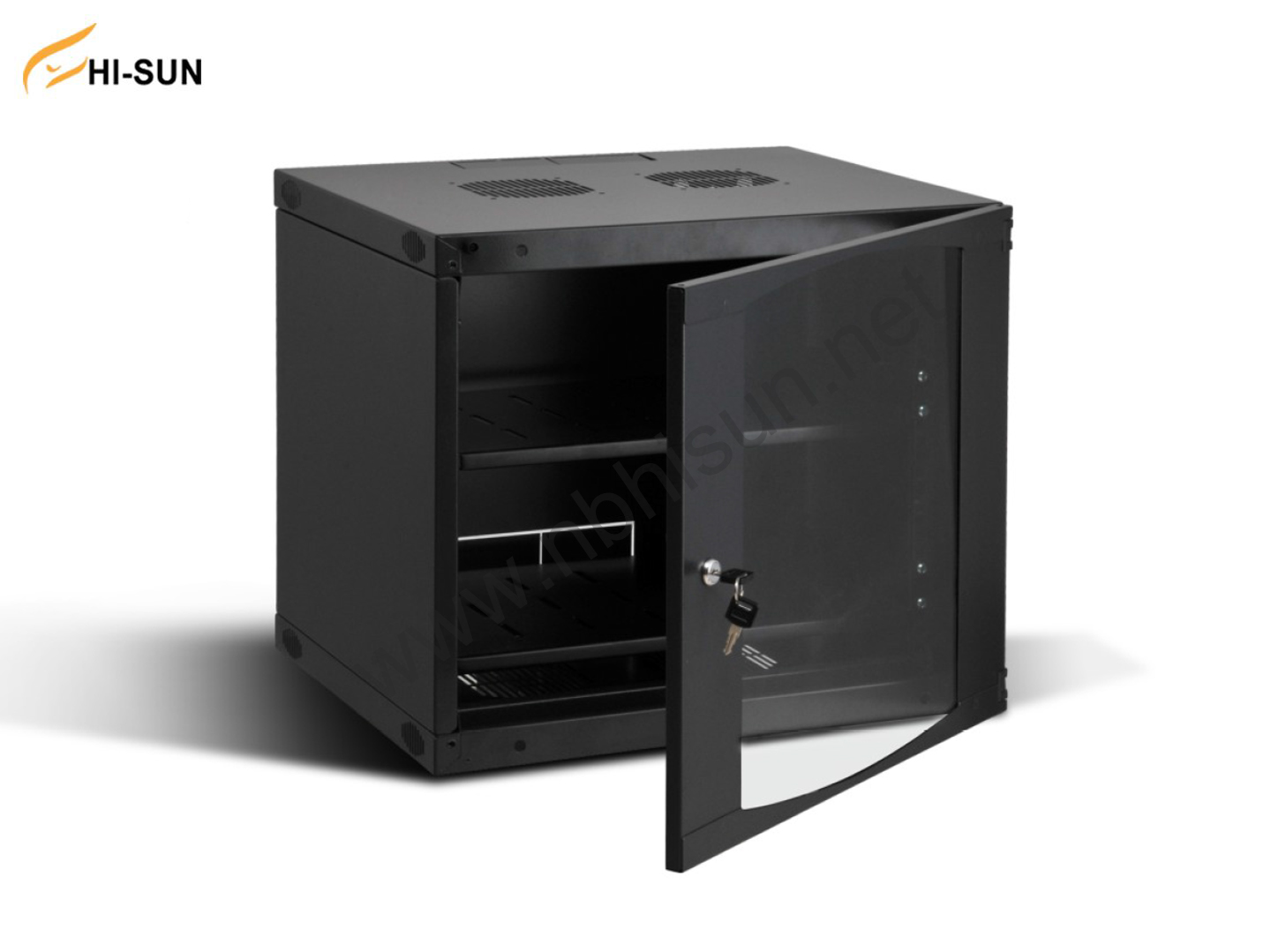

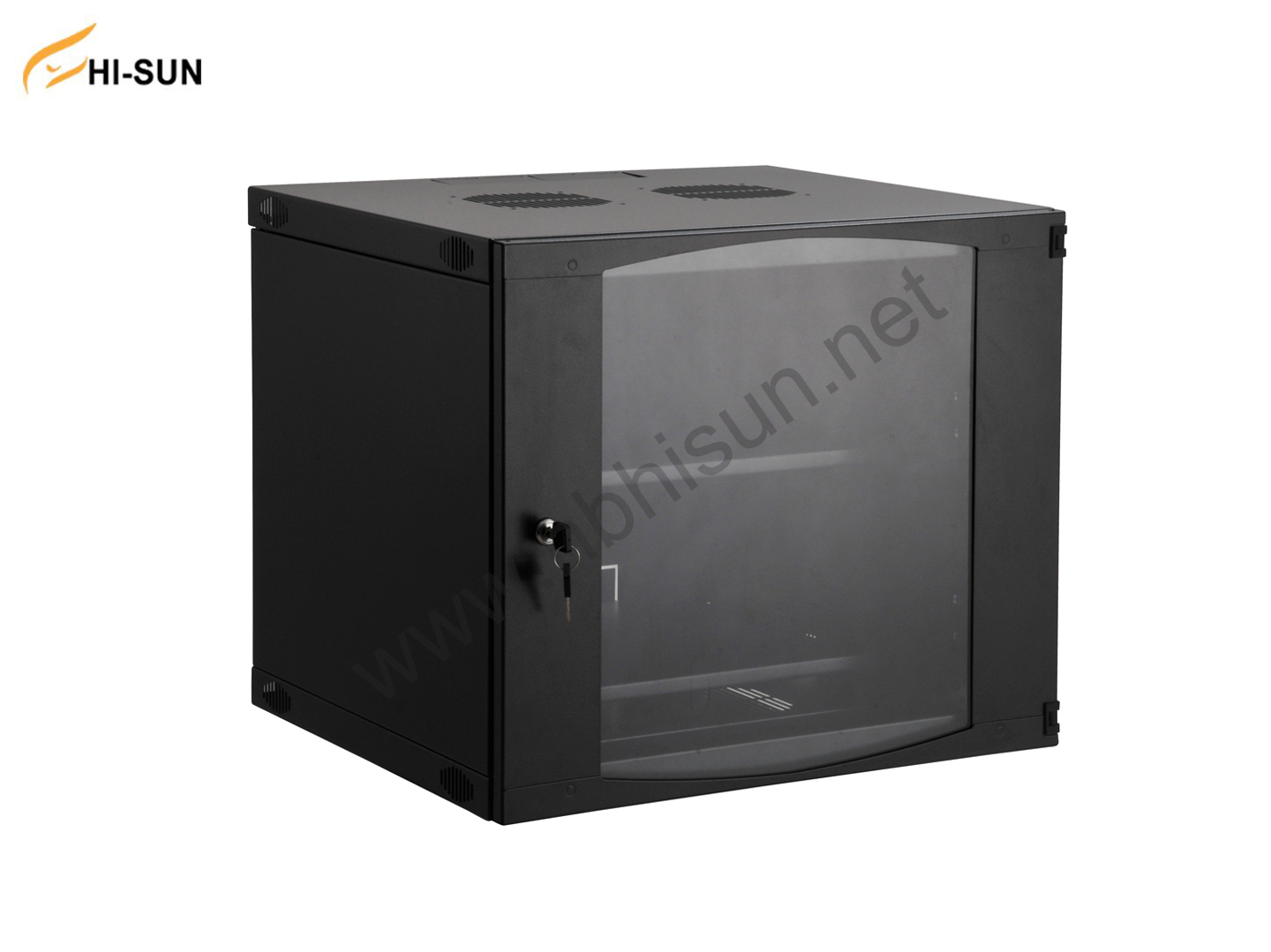

  • EW Wall Box
    EW Wall Box
    EW Wall Box
    ❤ 收藏
  • EW Wall Box

    Standard

    █
    Comly with ANSI/EIA RS-310-D、IEC60297-2、DIN41494;PARAT1;DIN41494;PART7.


    Material

    █  SPCC Cold Rolled Steel;
    █
    Thickness:Mounting Profile:1.5mm;
         others:1.0mm.



    Colour

    █  EW:RAL7035
    █
    EW:RAL7021


    Loading Capacity

    █  Static loading:30KG
    █
    Protection category:lp20


    FINISH

    █  Pretreated steel coated with textured,
        polyester powder paint

    重量:0.000KG
    • 数量:
商品描述

Standard

█
Comly with ANSI/EIA RS-310-D、IEC60297-2、DIN41494;PARAT1;DIN41494;PART7.


Material

█  SPCC Cold Rolled Steel;
█
Thickness:Mounting Profile:1.5mm;
     others:1.0mm.



Colour

█  EW:RAL7035
█
EW:RAL7021


Loading Capacity

█  Static loading:30KG
█
Protection category:lp20


FINISH

█  Pretreated steel coated with textured,
    polyester powder paint









                                   Feature

                                   ■   Knocked down and smaller packaging, easy to transport and
                                        carry.

                                   ■   Front and rear frame of specially-made structure, better
                                        stability.

                                   ■   Using 13 screw set to assembly the whole cabinet, it spends
                                        only 10mins by one people to operate.

                                   ■   It has a pilot pin to help close the front dcx>r to avoid mismatch,
                                        and the front door can be changed to another way to open.

                                   ■   The cable can be entered from top, bottom, back of the cabinet,
                                        suitable to every situation. The incoming cable hole patented,
                                        it can be adjusted, and has the round edge to avoid the cutting
                                        to the cable.

                                   ■   Side panel can be opening in rotated way or disassembling,
                                        having a space enough to wiring, the side panel can be locked
                                        safely from inside without the locker and key.

                                   ■   Maximum bearing capacity: 30KG.
