4CORES INDOOR
SIZE:100.5MM*80.5MM*28.5MM
Overview

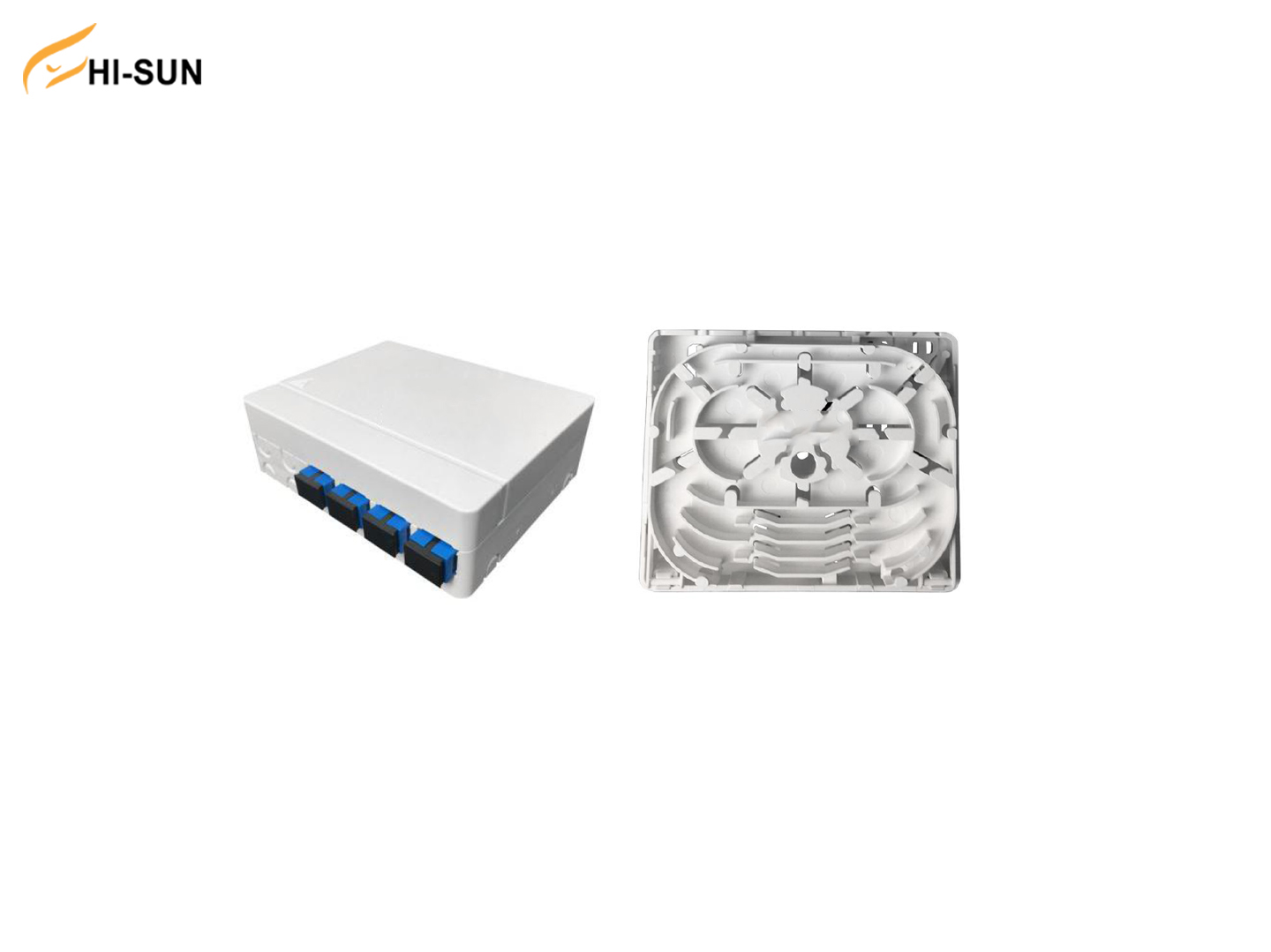

optical distribution box terminates one fiber optic cable with up to 4 cores, connecting the drop cable and ONU devices through fiber port. It brings significant improvements resulting in better customer experience when FTTH have to be deployed.
Features
1.ABS+PC material used ensures the body strong and light.
2.Easy installations: Mount on wall or just put on the ground.
3.Splicing tray can be removed when needed or during the installation for the convenient operation and installation;
4.Adapter slots adopted – No screws needed for installing adapters.
5.Plug fiber with no need to open the shell, easily accessible fiber operation.
6.Double-layer design for easier installation and maintenances:
-
Upper layer for splicing.
-
Lower layer for distribution.

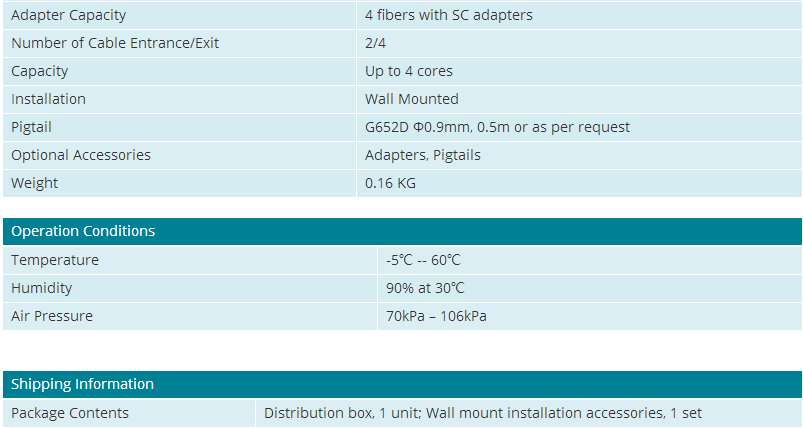

(2O.png)
