Product Details​

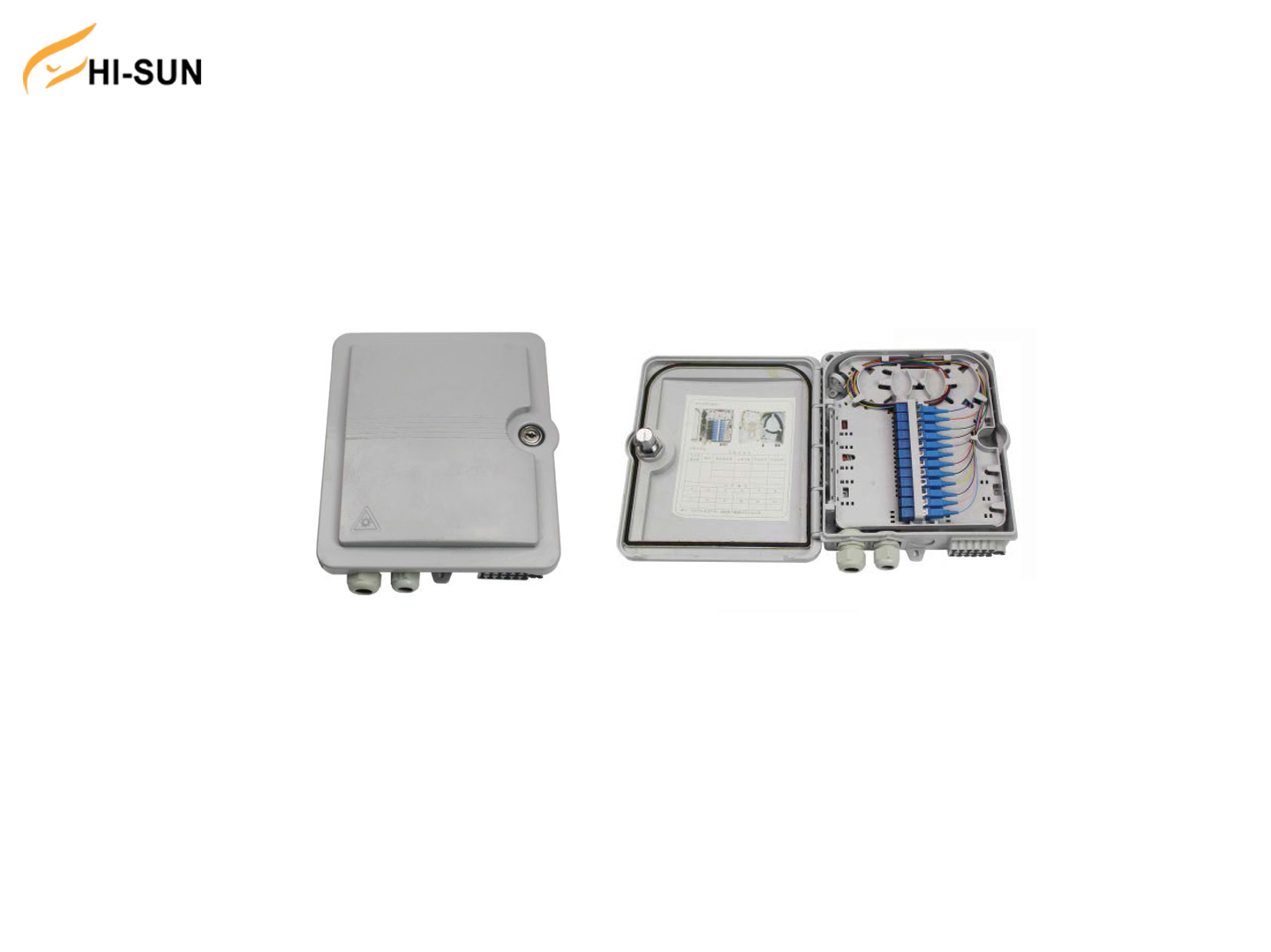

  • VB10-2P12A
    ❤ 收藏

  • VB10-2P12A

    12 CORES INDOOR&OUTDOOR
    SIZE:210MM*250MM*60MM

    Overview

    This distribution box terminates outside optical cables with up to 12fibers; it allocates 12adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • 满意度：

      销量： 0

      评论： 0 次

    重量：0.00KG
    • 数量：
商品描述

12 CORES INDOOR&OUTDOOR
SIZE:210MM*250MM*60MM

Overview

This distribution box terminates outside optical cables with up to 12fibers; it allocates 12adapters for connecting with max 12 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.

Features

1.ABS material used ensures the body strong and light
2.Protection Level: IP55
3.Water-proof design for outdoor uses, lock provided for extra security
4.Easy installations: Ready for wall mount – installation kit provided
5.Adjustable adapter slotused – to suit different size pigtails
6.Space saving! Double-layer design for easier installation and maintenances
7.Lower layer for splicing, also suitable for mini splitters
8.Upper layer for adapters, connectors and fiber distribution
9.Cable fixing units provided for fixing the outdoor optical cable
10.Both cable glands and tie-wraps accessible
11.Pre-connectorized cables supported (pre-connected with fast-connectors)
12.Bend radius protected and cable routing paths provided.


HI-SUN OPTIC  FIBER DISTRIBUTION BOX
