Product Details​

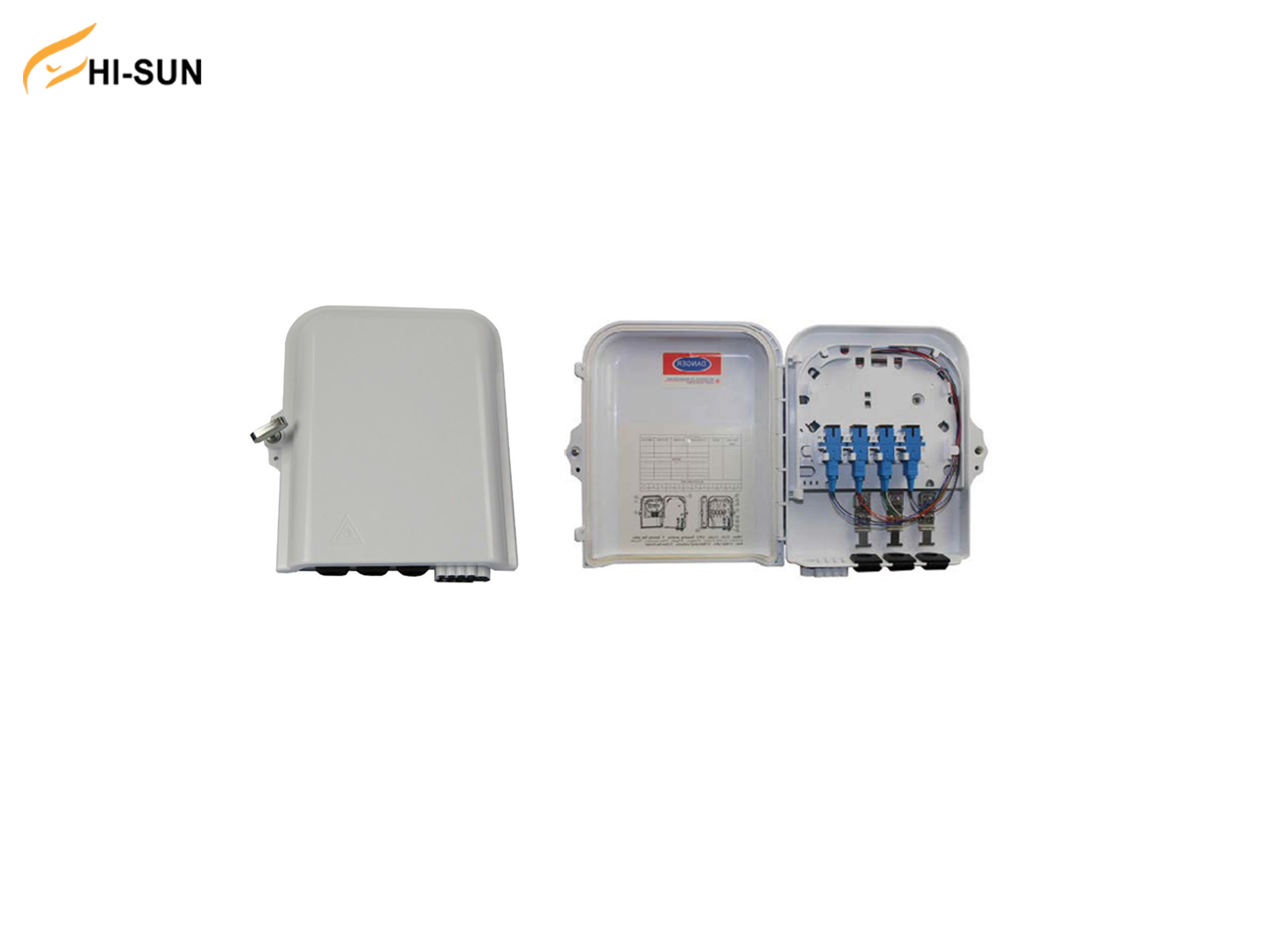

  • VB08-1P06A
    ❤ 收藏

  • VB08-1P06A

    8 CORES INDOOR&OUTDOOR
    SIZE:220MM*205MM*55MM

    Overview

    This fiber optics distribution box terminates up to 3 fiber optic cables, offers spaces for splitters and up to 8 fusions, allocates 8 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • 满意度：

      销量： 0

      评论： 0 次

    重量：0.00KG
    • 数量：
商品描述

8 CORES INDOOR&OUTDOOR
SIZE:220MM*205MM*55MM

Overview

This fiber optics distribution box terminates up to 3 fiber optic cables, offers spaces for splitters and up to 8 fusions, allocates 8 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

Features

1.ABS with PC material used ensures the body strong and light.
2.Water-proof design for outdoor uses.
3.Easy installations: Ready for wall mount - installation kits provided.


4.Pole mount (optional) – installation kits need to be ordered.
5.Adapter slots used – No screws and tools needed for install SC adapters and distribution.
6.Ready for splitters: designed space for adding splitters.
7.Space saving! Double-layer design for easier installation and maintenances:
8.Lower layer for splitters and over length fiber storage.
9.Upper layer for splicing, cross-connecting and fiber distribution.
10.Cable fixing units provided for fixing the outdoor optical cable.
11.Protection Level: IP55.
12.Accommodates both cable glands as well as tie-wraps.
13.Lock provided for extra security.
14.Max allowance for entry cables: max diameter 12mm, up to 3 cables.
15.Max allowance for exit cables: up to 8 simplex cables.

HI-SUN OPTIC  FIBER DISTRIBUTION BOX
