Product Details
Payment & Shipping Terms | Supply Capacity | ||
---|---|---|---|
Trade Term: | FOB,CFR,CIF,DDP,FCA,EXW | Production Capacity: | 10000 units per month |
Payment Terms: | L/C, T/T, Paypal | Packing: | Cartons |
MOQ: | 1 Piece | Delivery Date: | 15 days |
Means of Transport: | SEA, Air |

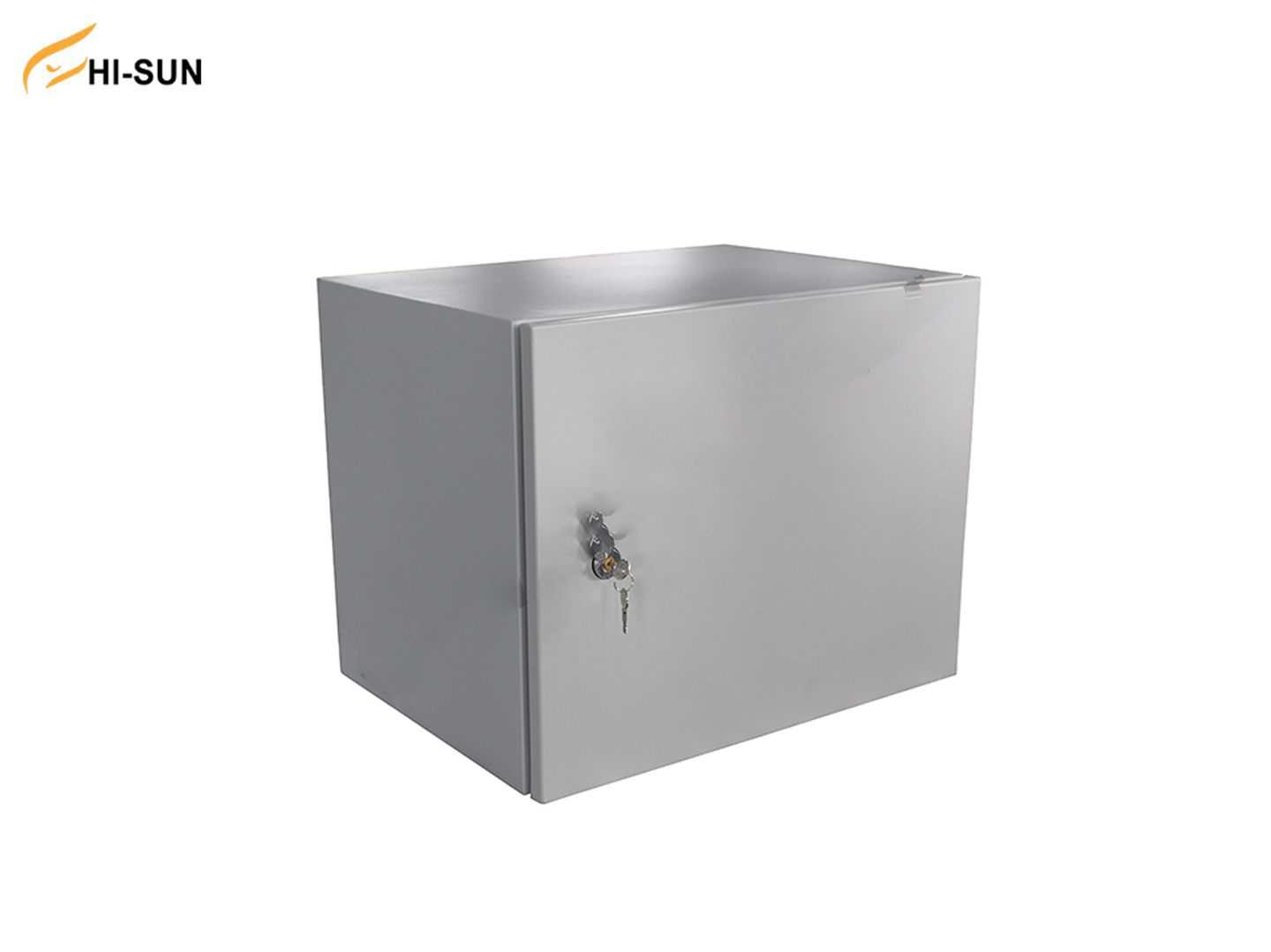

HS-OD05follows the IEC's standardized International Protection Code system for measuing capabilities.
The IP Code reflects the degree of protection as "IP" followed by two numbers;
the first digit shows the extent to which enclosures are protected against particles/dust, and protection to others from enclosed hazards.
The second digit indicates the extent of protection against water.
We carry IP65 enclosures which offers complete protection against particles/dust, and a strict control of protection against water. Because all of our enclosures strictly observe the standards, you can expect first-rate and competitiely-priced utdoor enclosures.
IP65 Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
IP55 Enclosures' Characteristics:
Protection from dirt, dust, oil, and other non-corrosive material
Complete protection from contact with enclosed equipment
Available in aluminum, carbon steel, and stainless steel
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Engraving, silk-screening, or anodizing services available
Custom with cutouts, insulation,cooling system, hinges, latches, or locks
Specifications
1. Completed enclosed design with IP65 or IP55 design
2. Bottom cabling entrance & cooling fan[IP55 only]
Flange connecting
AC cooling
3. Material options:
SPCC cold rolled steel
Stainless steel
Galvanized steel
4. IP rate : IP65 or IP55
5.Waterproof,dust proof:materials such as dirt, oils and non-corrosives
6.Strict rubber ealing belt
7. 4 ×Rear wall mounting kit
8.Machine protection solution:the cabinet is designed specifically to protect it from human damage, earthquake and other damages.
9.Yellow-green earthing cable for front door
10.Max static loading : 60 KGS
Standards
Width: 600 mm
Depth: 600,450 mm
Height: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U,OEM
Customized size is available
WELD STRUCTURE ONLY!
Industry Standard and Material:
Comply with
ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:Degrease, acgoods_id pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Materials:SPCC cold rolled steel or EG steel
Thickness:
Mounting profile:1.5 mm
others:1.00 mm to 1.20 mm
IP degree: IP-65 or IP-55
Loading capacity: Max Static loading---60 KG
Body color:RAL9005(black);RAL7035(grey),etc
Material | SPCC cold rolled steel |
Thickness | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm and etc are all available to be designed for the material used |
Processing | Laser cutting, CNC punching, CNC bending, Hand welding, stamping, etc |
Surface treatment | Painting, Plasma electrostatic painting, hot galvanized, powder coating, polishing, brushing, cataphoresis, etc |
Certification | ISO9001:2000 , CE, RoHS , SGS |
Delivery date | Within 30 days |
IP degree | IP55&65 |
Water proof | 0.2Mpa,10mm/min,30min,Endure water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min) No leakage inside Comply with GB 4208-1993 IP65 standard |
Fire proof | Non-metal marterial burning time< 1s(put onto blue fire over 30s) |
Noise proof | < 55db |
Voltage test | Comply with 48V DC or 220V AC |
Resistance test | resistance from earthing bolt to body <0.01Ω |
Working environment | Can normally work from -30 to 65 ° |
Color standard | Comply with GB/T 3181-1995 sheet 2 's color requirement |
Painting standard | Comply with GB/T 9286-1998 sheet 1, Class-1 |
9. Tolerance | +/-3mm |
