Product Details​

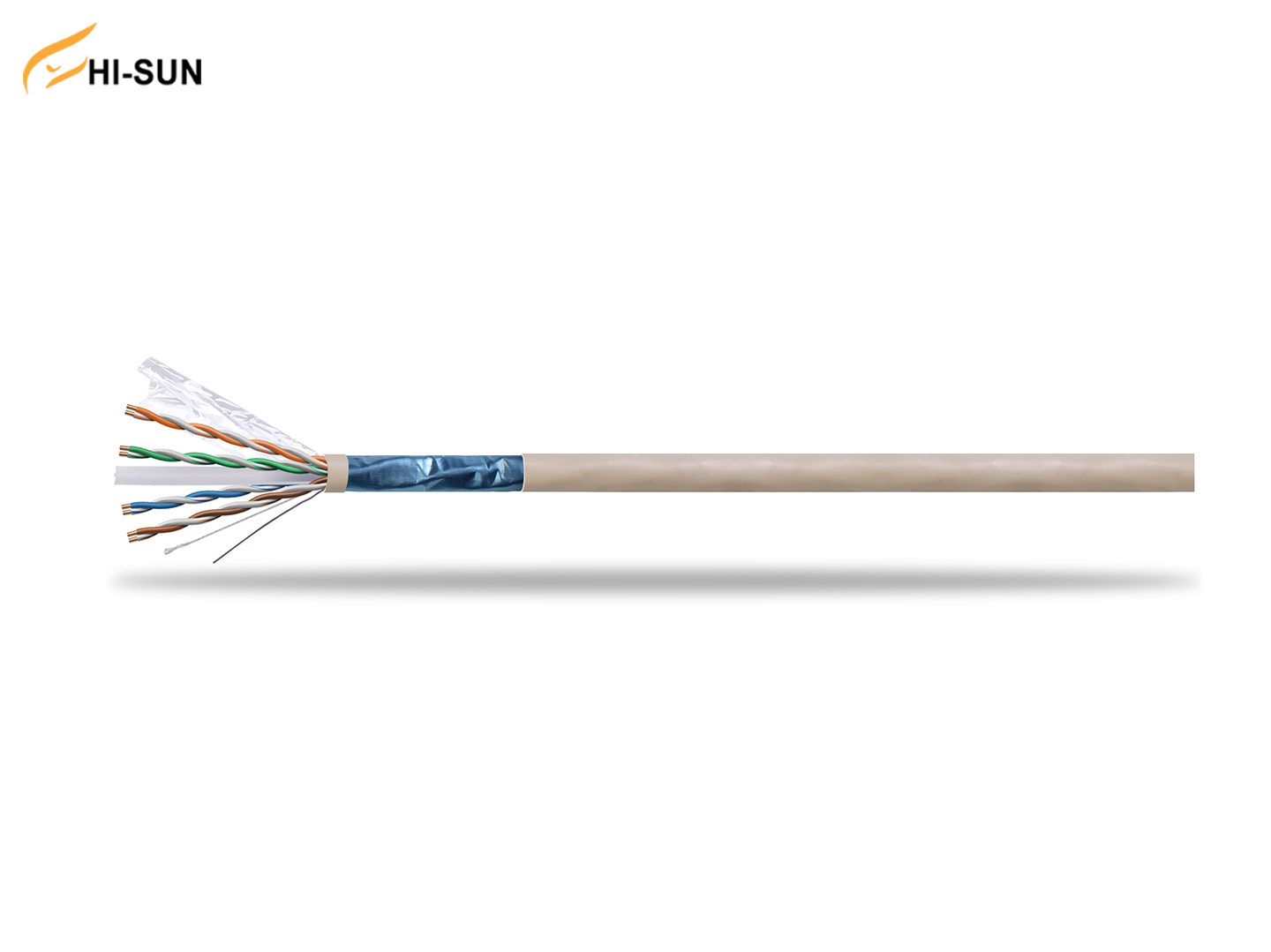

  • F/UTP shielded CAT6
    ❤ 收藏

  • F/UTP shielded CAT6

    Application

    Exceeds ANSI/TIA*568-C.2 and IS011801 2nd Edition

    Class E Category 6 channel standards.

    Exceeds requirements of ANSI/TIA-568-C.2 and IEC

    61156-5 Category 6 component standards.

    Meets IEEE 802.3af and IEEE 802.3at for PoE applications.

    Foil shield reduces ir>gress of EMI interference to ensure

    cable performance at high frequency levels.

    Descending length cable markings enable easy identification

    of remaining cable wNch reduces installation time and cable

    scrap.

    Color Availability: Additional cable colors available.


    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • 满意度：

      销量： 0

      评论： 0 次

    重量：0.00KG
    • 数量：
商品描述

Application

Exceeds ANSI/TIA*568-C.2 and IS011801 2nd Edition

Class E Category 6 channel standards.

Exceeds requirements of ANSI/TIA-568-C.2 and IEC

61156-5 Category 6 component standards.

Meets IEEE 802.3af and IEEE 802.3at for PoE applications.

Foil shield reduces ir>gress of EMI interference to ensure

cable performance at high frequency levels.

Descending length cable markings enable easy identification

of remaining cable wNch reduces installation time and cable

scrap.

Color Availability: Additional cable colors available.






Electrical Characteristics
█Impedance:1-250MH2 100±15<0hm8).
█ Rated Temperature: 75*C.
█ DC Resistance Unbalance(%): Max 2.5.
█ DC Resistance 20'C: 8.4(0hms/100m).
█ Pair-to-Gruond Capacitance Unbalance: 330(pF/100M).
█ Insulation Resistance: >5000MO*Km.
█ Dielectric strength: DC 2500V 2S.

HI-SUN F/UTP Unshielded CAT6
