Product Details​

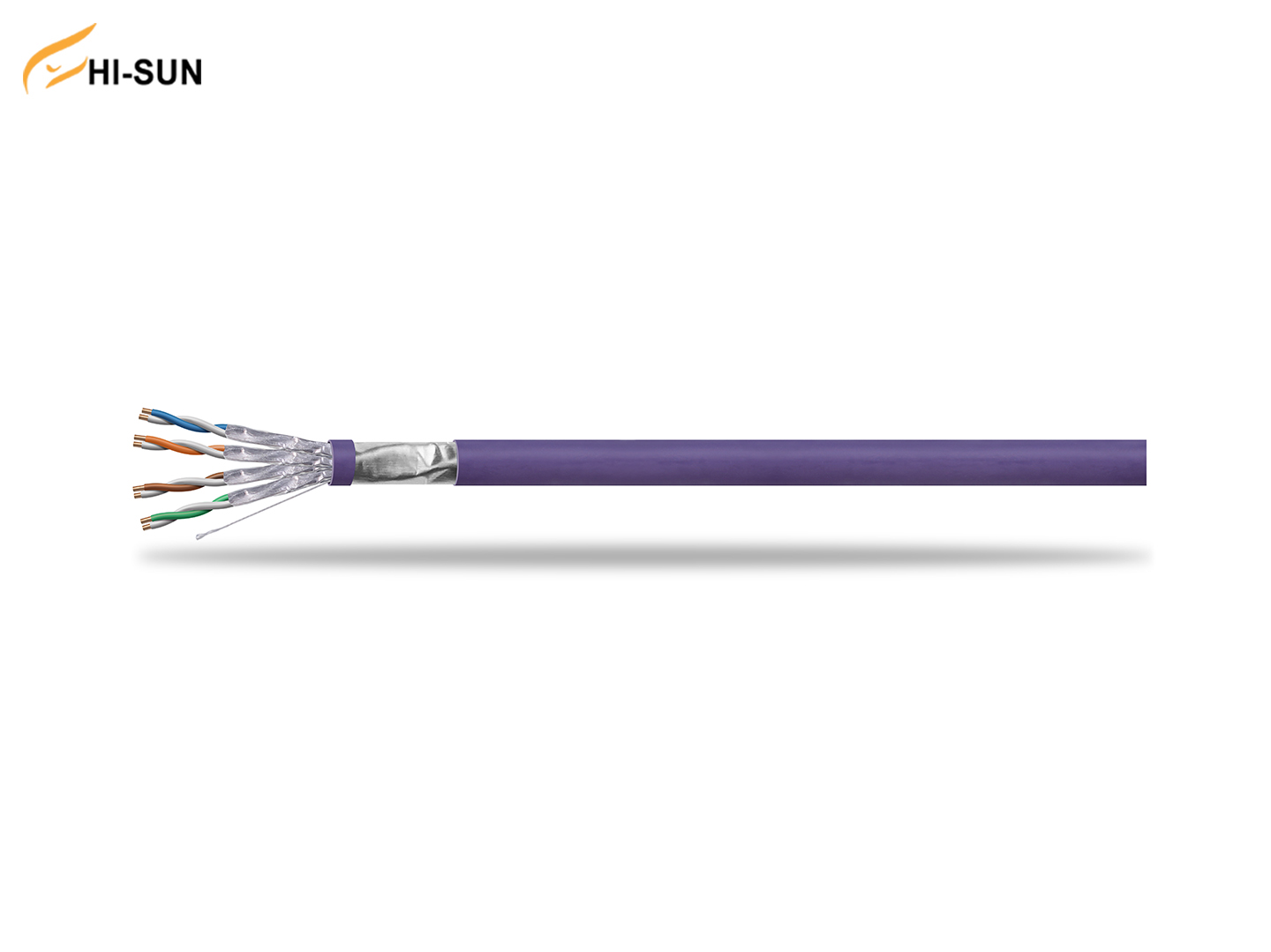

  • F/FTP Shielded CAT6A
    ❤ 收藏
  • F/FTP Shielded CAT6A

    Standard
    IEC/ISO 61156-5
    ANSI/TIA568C.2
    ISO/IEC 11801
    APPLICATION
    Suitable for structured premises cabling

    For trans
    mission of digital and analogue vioce and data signals
    Especially suitable for all Class EA  applications.
    ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 1000Base-T,10G Base-T,(IEEE 802.3)
    Token Ring4/16Mbit/s.TP-PMD/TP/DDI 125 Mbit/s,ATM
    155Mbit/s.IEEE 802.5

    • ¥0.00
      ¥0.00
      ¥0.00
      ¥0.00
    • 满意度:

      销量: 0

      评论: 0 次

    重量:0.00KG
    • 数量:
商品描述

Standard
IEC/ISO 61156-5
ANSI/TIA568C.2
ISO/IEC 11801
APPLICATION
Suitable for structured premises cabling

For trans
mission of digital and analogue vioce and data signals
Especially suitable for all Class EA  applications.
ISDN,Ethernet 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 1000Base-T,10G Base-T,(IEEE 802.3)
Token Ring4/16Mbit/s.TP-PMD/TP/DDI 125 Mbit/s,ATM
155Mbit/s.IEEE 802.5






Electrical Characteristics
Impedance:4-100mhz 100+-15(ohms).
100-200mhz 100+-22(ohms).
200-1000mhz 100+-32(ohms).
█Max.Conductor DC Resistance 20`C:8.7(ohms/100m)
Resistance unbalance(%):max2.5
█Pair-to-ground Capacitance Unbalance:330(pf/100m)
█Transfer Impendance:Max10 mohms/m@100mhz
Coupling Attenuation:Min 80dB
█Installation temperature:0~50`C
█Operation temperature:-20~60`C
