商品描述

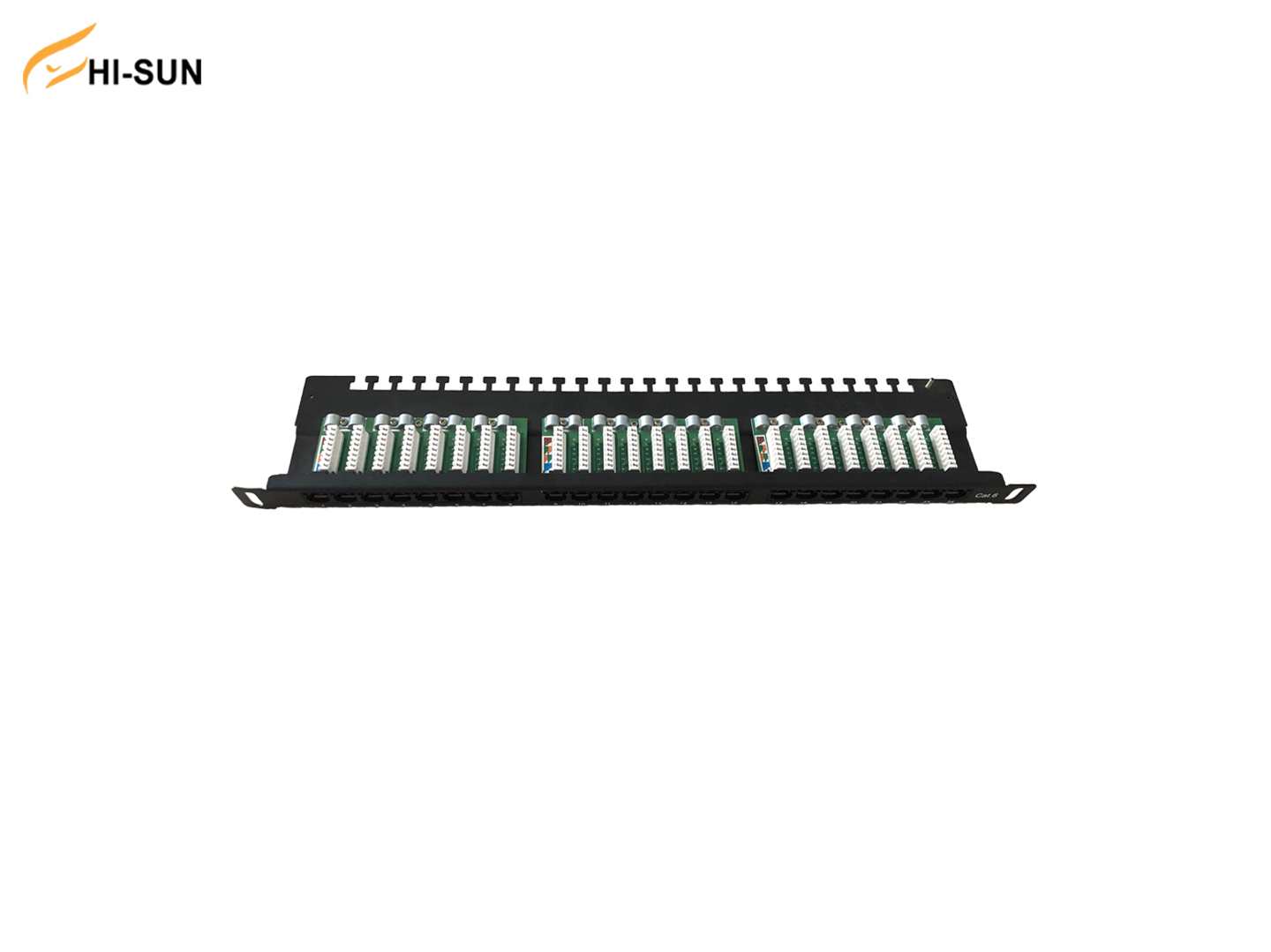

0.5U UTP CAT6A PATCH PANEL 24 PORT
Electrical:
Current Rating:1.5 Amps
Insulation Resistance:500 M ohms (MIN)
Contact Resistance:20m ohms (MAX)
DC REsistance:0.1 ohm MAX
Mechanical Specification:
IDC Punch Down Cycle:>250 mating cycles
RJ45 Insertion Life:>750 mating cycles
IDC Accept:22-26 AWG Solid Wire
Material:
Panel:1.5mm thickness metallic panel/RAL9005
Spring:Phosphor Bronze with gold-painted (3U” ~50U”)
over nickel-painted.
IDC Contact:Phosphor Bronze with Tin-painted
Plastic:PC
Current Rating:1.5 Amps
Insulation Resistance:500 M ohms (MIN)
Contact Resistance:20m ohms (MAX)
DC REsistance:0.1 ohm MAX
Mechanical Specification:
IDC Punch Down Cycle:>250 mating cycles
RJ45 Insertion Life:>750 mating cycles
IDC Accept:22-26 AWG Solid Wire
Material:
Panel:1.5mm thickness metallic panel/RAL9005
Spring:Phosphor Bronze with gold-painted (3U” ~50U”)
over nickel-painted.
IDC Contact:Phosphor Bronze with Tin-painted
Plastic:PC
