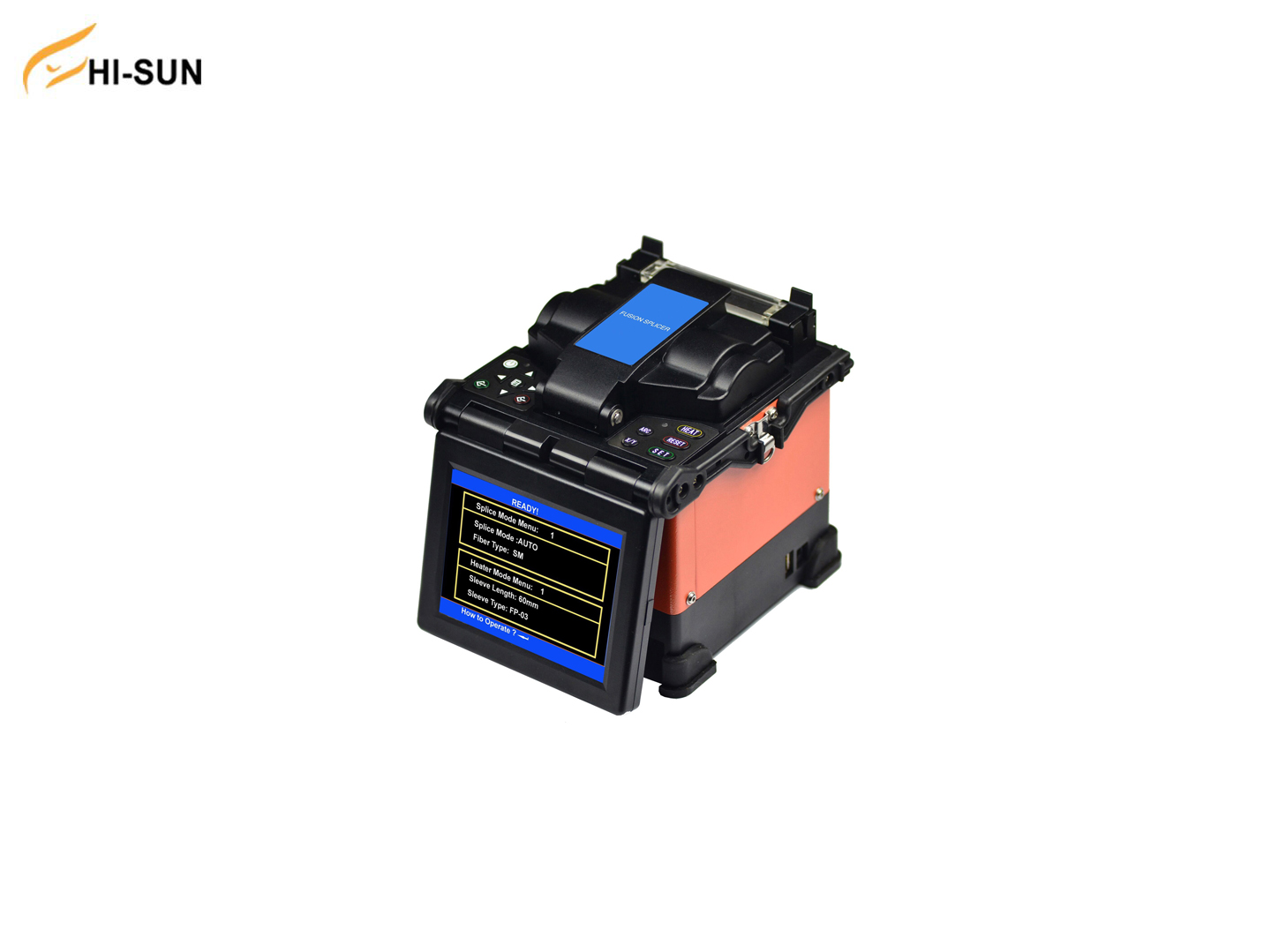

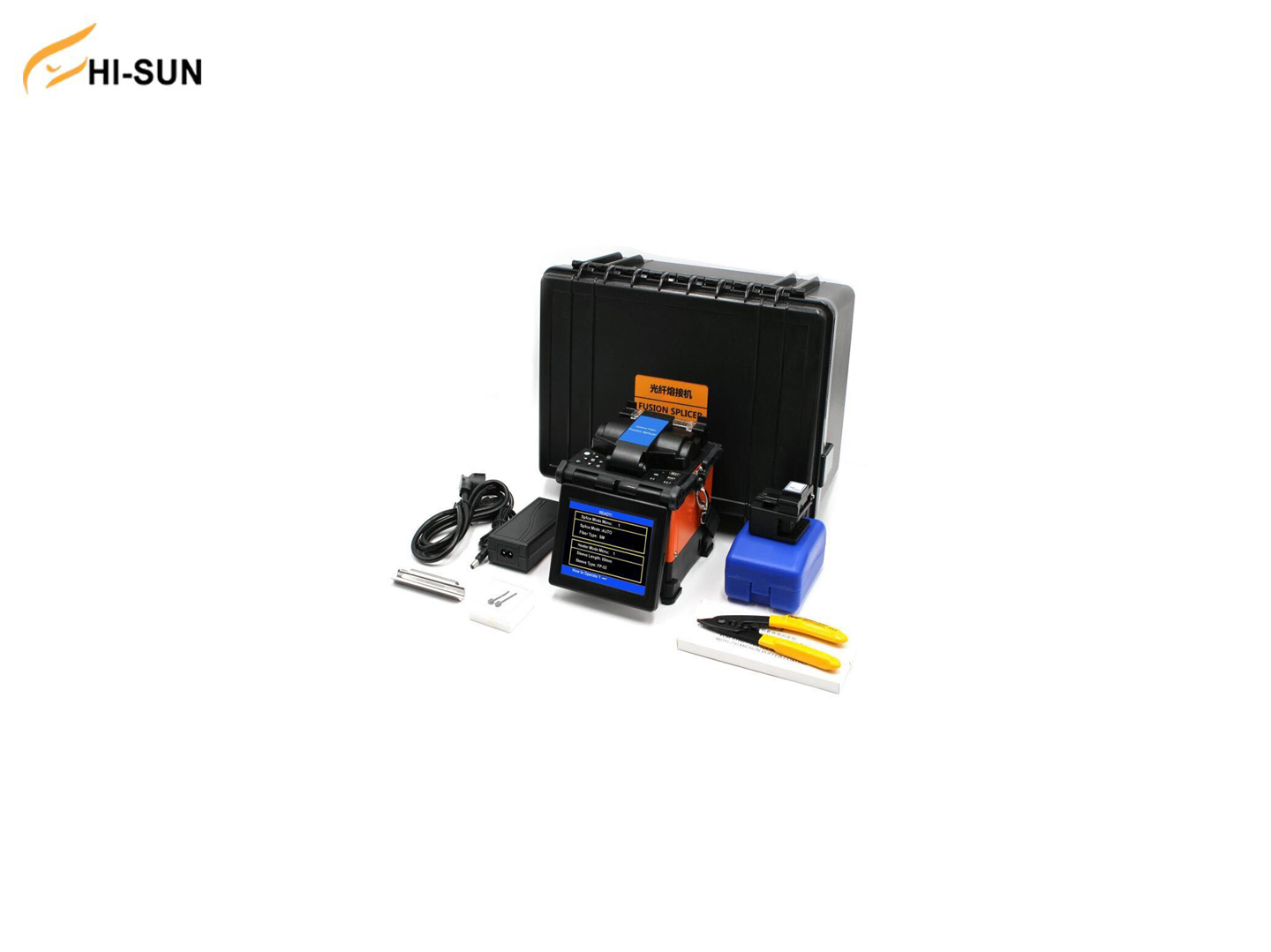

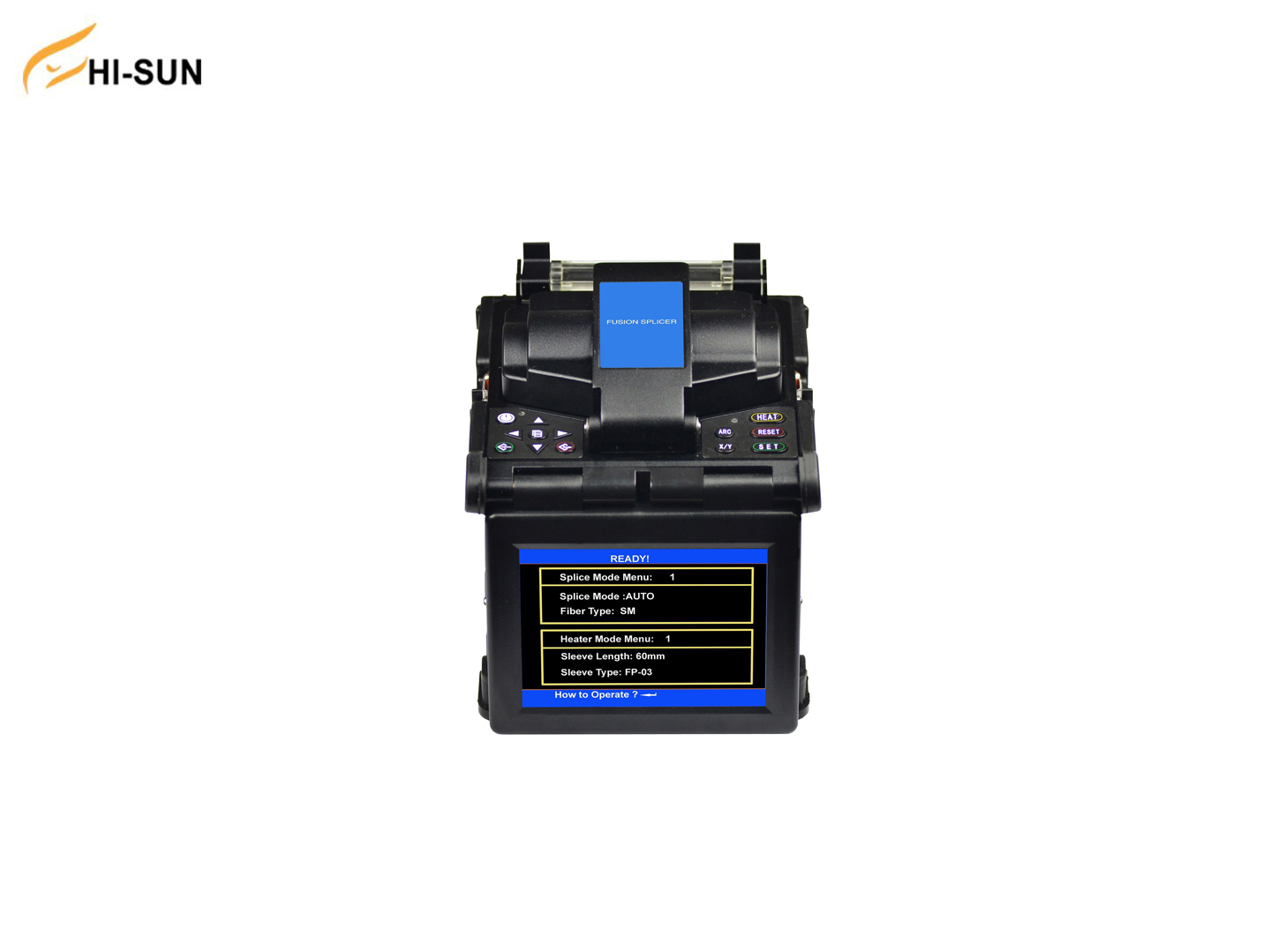

FL-118 High Precision Fusion Splicer
Model Number: FL-118
Type: fusion splicer
Use: FFTTH
Warranty Time: 6 months
Splicing Type: SM, MM, DS, NZDS
Splicing Loss: 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return Loss: >60dB
Splicing Mode: Manual, Half Auto, Auto
Fiber Alignment: Core to Core Alignment by PAS technology
Applicable Fiber: Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time: ≤9s
Heat Time: ≤30s AUTO HEAT
Cleaved Length: 8~16mm
Single-Mode Fiber: SM, MM, DS, NZDS
Multi-Mode Fiber: SM, MM, DS, NZDS
Application: Networking
Power Input: ≤20W
Type: fusion splicer
Use: FFTTH
Warranty Time: 6 months
Splicing Type: SM, MM, DS, NZDS
Splicing Loss: 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return Loss: >60dB
Splicing Mode: Manual, Half Auto, Auto
Fiber Alignment: Core to Core Alignment by PAS technology
Applicable Fiber: Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time: ≤9s
Heat Time: ≤30s AUTO HEAT
Cleaved Length: 8~16mm
Single-Mode Fiber: SM, MM, DS, NZDS
Multi-Mode Fiber: SM, MM, DS, NZDS
Application: Networking
Power Input: ≤20W
|
Fiber Image/ Magnification
|
300/200
|
|
View Display
|
5 inch digital high-quality LCD screen
|
|
Tension Test
|
Standard 2N (option)
|
|
Heat Shrinkable Sleeve
|
60mm, 40mm and serials heat Shrinkable Sleeve
|
|
Battery Capacity
|
200 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time)
|
|
Battery Life
|
Cycling charge 300-500 times, easy to replace battery
|
|
Electrodes Life
|
3000, easy to replace electrodes
|
|
Power Source
|
≤20W
|
|
Interface
|
USB Convenient data download and software update
|
|
Construction Lighting
|
Built in high brightness, wide range of lights, easy to operate at night
|
|
Power supply
|
Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A
|
|
Operating Condition
|
0-5000m above sea level, Temperature: -10-60℃, Humidity:0～95%RH (No dew)
|
|
Weight
|
1.98 KG (including battery)
|
|
Dimension (LxWxH)
|
135mm(L)×158mm(W)×155mm(H)
|
|
Certificate
|
CE
|
