Product Details​


  • U/UTP steel wire support unshielded CAT5e
    ❤ 收藏

  • U/UTP steel wire support unshielded CAT5e

    Application

    Meets or exceeds requirements of ANSi/TIA-568-C.2

    Category 5e and IS011801 2nd Edition Class D channel

    standards.

    Meets or exceeds  requirements of ANSI/TIA-568-C.2

    and  IEC 61156-5  Category 5e component standards.

    Third party tested to Category 5e channel compliance.

    Meets requirements of IEEE 802.3af and IEEE 802.3at for

    PoE applications.

    Descending length cable markings enable easy identification

    of remaining cable which reduces installatjon time and cable

    scrap.

    Color Availability: Additional cable colors available.
    Color Availability:Additional cable colors available

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • 满意度：

      销量： 0

      评论： 0 次

    重量：0.00KG
    • 数量：
商品描述

Application

Meets or exceeds requirements of ANSi/TIA-568-C.2

Category 5e and IS011801 2nd Edition Class D channel

standards.

Meets or exceeds  requirements of ANSI/TIA-568-C.2

and  IEC 61156-5  Category 5e component standards.

Third party tested to Category 5e channel compliance.

Meets requirements of IEEE 802.3af and IEEE 802.3at for

PoE applications.

Descending length cable markings enable easy identification

of remaining cable which reduces installatjon time and cable

scrap.

Color Availability: Additional cable colors available.
Color Availability:Additional cable colors available





Electrical Characteristics
█Impedance:1-100MHz 100t15 █Rated Temperature: 75'C.
█DC Resistance Unbalance^%); Max 2.5.
█DC Resistance 20'C:9.5(Ohms/100m).
█Pair-to-Gruond Capacitance Unbalance: 330(pF/100M).
█lnsulatk>n Resistance: >5000MQ*Km.
█Dielectric strength: DC 2500V 2S.

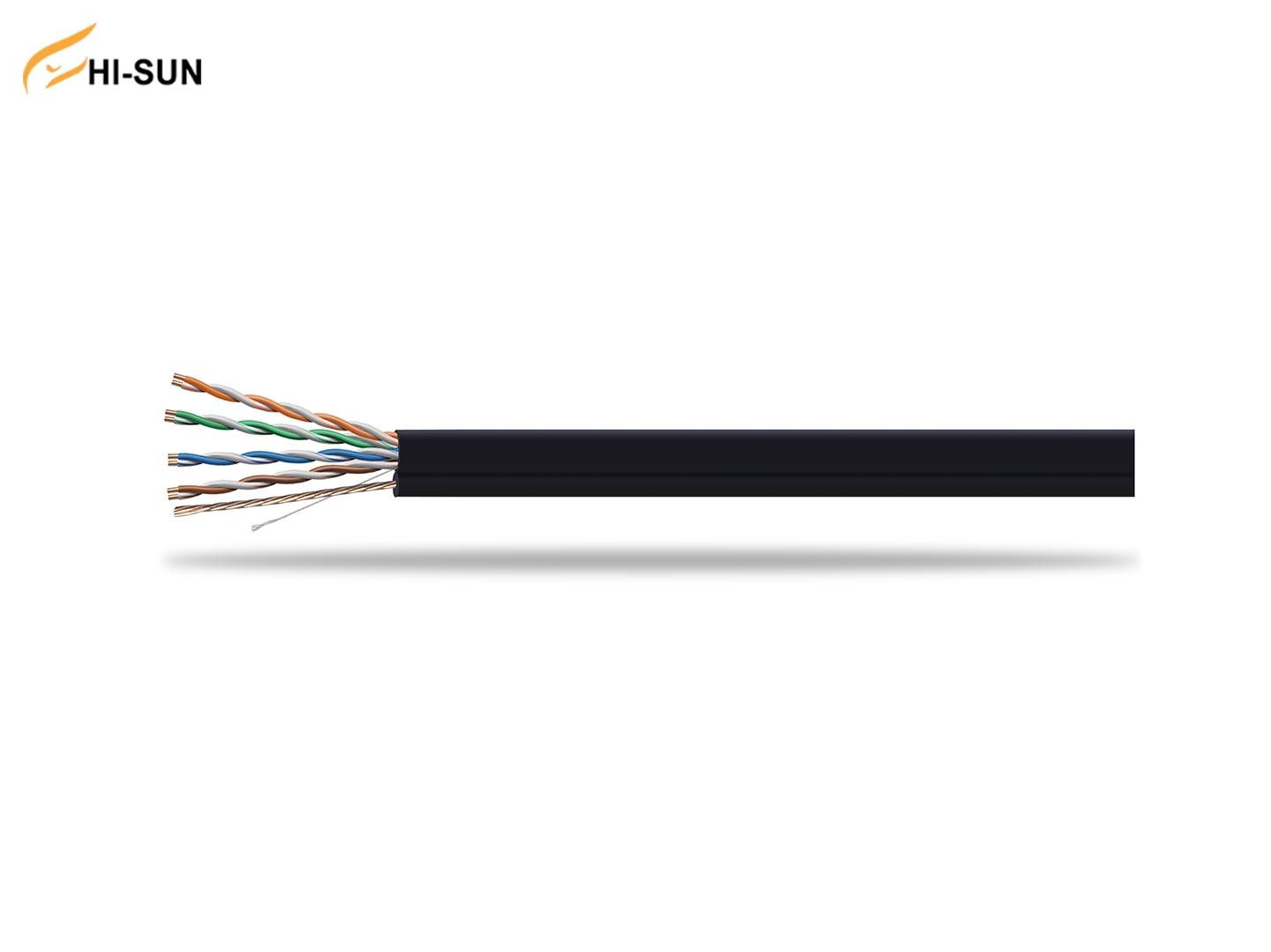

HI-SUN U/UTP steel wire support unshielded CAT5e
